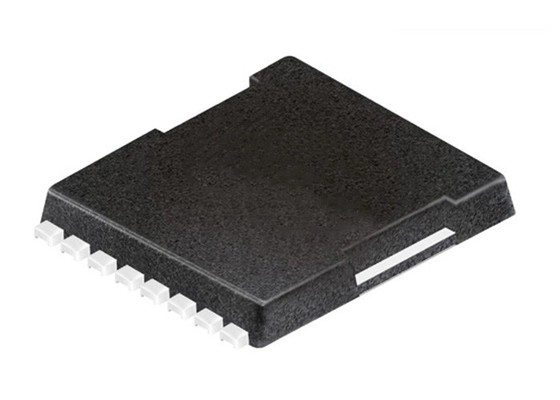

Power MOSFET Original Integrated Circuit IPT020N10N5ATMA1

Name: Power MOSFET Original Integrated Circuit IPT020N10N5ATMA1
Brand: Original Factory
Price: 1 USD

Brand Name : Original Factory

Model Number : IPT020N10N5ATMA1

Certification : Lead free / RoHS Compliant

Place of Origin : China

MOQ : 8

Payment Terms : T/T, L/C, Western Union

Supply Ability : 80000 Piece/Pieces per Month

Delivery Time : 2-5 work days

Packaging Details : PQFN 3.3 X 3.3

Type : integrated circuit

Series : OptiMOS™5

RAM : 48-bit

Temperature : -55°C ~ 175°C (TJ)

Voltage - Supply : 2.375V ~ 3.465V

Products name : Integrated Circuit Chips

Contact Now

Power MOSFET Original Integrated Circuit IPT020N10N5ATMA1

Product Description

Less paralleling required
Increased power density
Reduced switching and conduction losses

Product Specifications

Part Number:	IPT020N10N5ATMA1
FET Type:	N-Channel
Operating Temperature:	-55°C ~ 175°C (TJ)
Power Dissipation (Max):	273W (Tc)
Series:	OptiMOS™5
Technology:	MOSFET (Metal Oxide)
Input Capacitance (Ciss) (Max) @ Vds	11000 pF @ 50 V
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	31A (Ta), 260A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	2mOhm @ 150A, 10V
Vgs(th) (Max) @ Id	3.8V @ 202µA
Gate Charge (Qg) (Max) @ Vgs	152 nC @ 10 V
Vgs (Max)	±20V

FAQ

Q1: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q2: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q3: How about your delivery time?
A:Generally, goods would be shipped in 1-7 work days after payment received, finally depends on order quantities.
Q4: What is your MOQ?
A:Minimum order quantity starts from ONE piece,it depends your specific order!
Q5: HOW can we get samples from you?
A:Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q6:What is your products quality?Do you test all your goods before delivery?
A:Yes,We have 100% test before delivery,We can ensure the product quality of our company. All products have 30-90 days of quality assurance.

Any other more questions, please feel free to contact us. We are always at your service !

1.14V ~ 1.26V
